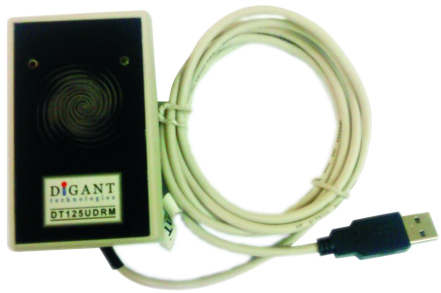

RFID desktop reader DT125UDRM

LF RFID USB Stand Alone Reader with Memory: DT125UDRM

The DT125UDRM proximity LF RFID USB Stand Alone Reader with Memory works at the industry standard 125 KHz frequency, designed to detect, read and stores EM410x Series Unique tags in the internal memory with date and time stamp. Reader is designed to work from +9 VDC / +12 VDC, or USB power, cost-effective and reliable reader which can be used in standalone reader applications.

Features

  • Low power consumption
  • Built-in 2MB memory
  • Real time clock, command set provided to set the date and time
  • Stores the tag ID in the internal memory along with date and time, maximum of 50,000 logs can be stored inside the memory
  • Authentication enable and disable modes provided, reader can be used as stand alone reader by enabling authentication enable mode
  • 30,000 tags can be registered into the reader
  • Tags registration into the reader using command set and the reader will authenticate the registered tags in Authentication enable mode
  • Tag authentication can be done through PC application software in Authentication disable mode
  • Commands to download the data from the memory
  • LED/Beeper to indicate the status of tag read operation
  • USB interface
  • Excellent reading performance
  • Cost effective and portable

Application

Owing to very low power consumption and user-friendly interface, the applications of the LF RFID USB Stand Alone Reader are limited by the imagination of the designer. Common applications for this Reader include:

  • Card Registration
  • Point of Sale (POS)
  • Time and Attendance

Specifications

Dimensions (LXBXH) mm 90 x 55 x 25
Operating Frequency 125 KHz
Operating Voltage +9 VDC / +12 VDC + / - 10% (Optional USB powered)
Operating Current 90mA
Operating Temperature 0C ~ 55C
Interface USB
Baud Rate 9200bps
Reading Range <=50 mm
Tag Types EM410x Series Unique tags
Package ABS Plastic
Color Off-White / Black

Adaptor has to be bought seprately Price: Rs. 300/-
