RFID LF passive tags

LF OEM RFID HITAG-S RS232 Desktop Reader DT125HTSDR

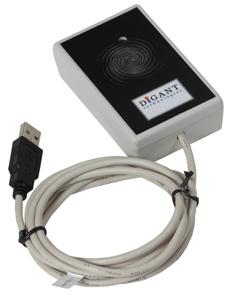

The DT125HTSDR proximity LF OEM RFID HITAG-S RS232 Desktop Reader works at the industry- standard 125 KHz frequency, designed to detect and read Hitag-S256 tags. Cost-effective and reliable reader which can be used in desktop reader applications.

Features

  • Low power consumption
  • LED / Beeper to indicate the status of tag read/Write operation
  • Supports Hitag-S256 tags
  • RS232 interface
  • Excellent reading performance
  • Cost effective and portable

Application

Owing to very low power consumption and user-friendly interface, the applications of the LF OEM RFID Hitag-S256 RS232 Desktop Reader Desktop Reader are limited by the imagination of the designer. Common applications for this Reader include:

  • Card Registration
  • Point of Sale

Specifications

Dimensions (LXBXH) mm 90 x 55 x 25
Operating Frequency 125 KHz
Operating Voltage +9 VDC / +12 VDC
Operating Current 50mA
Operating Temperature 0C ~ 55C
Interface RS232
Baud Rate 9600bps
Reading Range <=50mm
Tag Types Hitag-S256 tags
Package ABS Plastic
Color Off-White / Black
