RFID Products

Welcome to Digant Technologies, your partner for RFID Solutions!


RFID Reader Modules

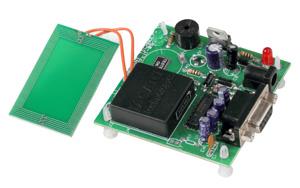

HF OEM RFID SCOSTA-CL RS232 based Training Kit: DT135SCLEVS

HF RFID SCOSTA-CL RS232 BASED Training Kit provides an advanced and fully functional system to evaluate and quickly deploy a pilot RFID application or a complete RFID application.

  • Enables an effective and affordable demonstration of a cost-effective upgrade or inte-gration with your existing business processes.
  • User-friendly evaluation software enables development of application software even before the hardware platform is ready.
  • With the standard RS232 interface, the DT135SCLEVS is a plug-and-play solution, ideal for logical access applications, as well as financial, ticketing, access control, and others

Features

  • Easy to use
  • LED / Beeper to indicate Tag read / write status
  • Provides excellent reading performance
  • Provision to connect external Antenna

Specifications

Operating Voltage +5VDC
Reading Range >=50 mm
Operating Frequency 13.56 MHz
Operating Temperature 0C to 55C
Interface RS232
Baud Rate 19200bps
Reading Range <=50 mm
Tag Types SCOSTA-CL
Package ABS Plastic
Color Off-White / Black

The evaluation kit consists of:

  • One HF SCOSTA-CL OEM RFID Module mounted
  • Evaluation software (Windows platform)
  • Two compatible RFID tags
  • Module datasheet
  • Evaluation kit user guide
  • RS232 cable
