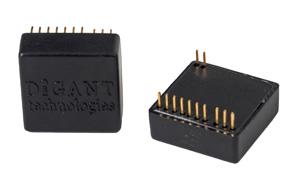

DT135MIFRU - HF MIFARE RFID Read / Write Module

The DT135MIFRU HF Compact Plug & Play Module is a contactless proximity Read / write device that supports ISO14443A RFID Devices including the whole MifareŽ family. By using the serial interface the device can be connected to a PC or any other host system. The module works at industry-standard 13.56MHz Frequency and it is designed to detect and Read / Write Mifare1K, 4K and Ultra light Tags.


  • UART Interface
  • Plug and Play, needs +5V to become a Reader / Writer
  • Low Power Consumption
  • No repeat reads
  • LED / Beeper indicates Tag reading / Writing operation
  • Excellent Read / Write performance without an external circuit
  • Compact size and cost-effective
  • A very efficient module for portable readers


Dimensions (LXBXH) mm 30 x 30 x 10
Frequency 13.56MHz
Reading Distance <=50mm
Interface UART
Antenna External
Supply Voltage +5 VDC
Operating Temperature 0°C to 55°C
Transponder (Tag / Card) Types Mifare1K, 4K, Ultralight
Output Format ASCII
Housing Plastic with 12x pin out
Color Black


  • Logistics
  • Supply chain management
  • Printer / Production Equipment
  • PC Access
  • e-Payment & e-Ticketing for Events and Public Transport.
